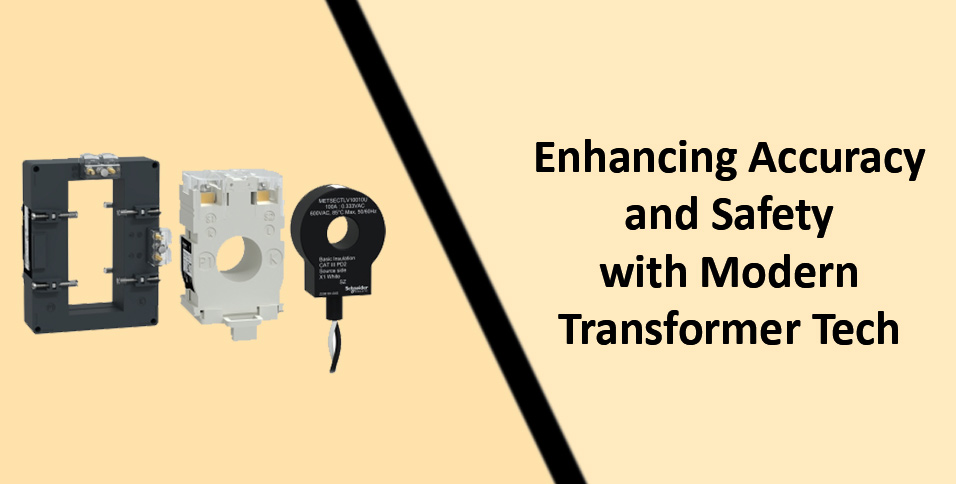

Enhancing Accuracy and Safety with Modern Transformer Tech

Follow Us:

I’m sure you’ve heard the buzz about current transformer technology. It’s a game changer, enhancing precision and safety in power systems like never before. But what exactly is it? How does it work? And why should we care?

In this article, I’ll be delving into the heart of this technological revolution. We’ll explore the inner workings of current transformers, their role in improving accuracy and safety, and why they’re making such waves in the industry.

Advancements in Current Transformer Technology

Increased Precision through Advanced Design

Current transformers now incorporate advanced design elements that significantly boost their precision. For instance, newer models often feature toroidal cores made from nanocrystalline materials. This configuration enhances the accuracy and reduces errors due to phase displacement.

Toroidal cores are made from nanocrystalline materials.Enhanced accuracy and reduced phase displacement errors

Enhanced Safety Measures

Safety is paramount when dealing with high-voltage systems. Modern current transformers are equipped with additional protective features, such as insulation resistance and polarity indicators, which increase overall safety during operation.

Insulation resistancePrevents electrical faults
Polarity indicatorsEnsures correct installation

Digital Current Transformers

Digital current transformers have emerged as game-changers. They exhibit improved accuracy over their conventional counterparts by significantly reducing phase displacement errors. With high precision, they transform high currents into low, manageable values that can be easily processed digitally.

These transformers also present an added layer of safety. They are designed with high insulation resistance, which minimizes electrical faults. Additionally, polarity indicators guide correct installation procedures to prevent mishaps.

Let’s take an example: ABB’s PCM600 protection relay digital current transformer is known for its remarkable performance in terms of accuracy and safety measures implemented.

Overall, these transformations make power systems more efficient and safer to operate.

Miniature and Lightweight Current Transformers

These compact devices pack quite a punch regarding accuracy and safety.

Let’s delve into their distinct characteristics:

  1. Compact Size: Miniature current transformers are designed with small footprints, making them ideal for use in tight spaces.
  1. Lightweight Design: These transformers are much lighter than traditional ones, easing installation and transportation efforts.
  1. High Accuracy: Despite their size, they don’t compromise on accuracy—their design helps reduce phase displacement errors.
  1. Safety Measures: Like their larger counterparts, these miniature versions also have high insulation resistance and polarity indicators for safe installation.

For instance, Schneider Electric’s ABL6TS Series features miniature current transformers that excel in confined spaces without compromising performance or safety.

Thus, the advent of miniature and lightweight current transformers marks an exciting development in transformer technology. They offer power systems increased flexibility alongside enhanced accuracy and safety measures.

Smart Current Transformers

Safe and accurate smart current transformers are a technological breakthrough. Smart features distinguish these devices from others.

For instance, smart current transformers use DSP, greatly improving measuring precision. ABB’s CMF series’ accurate readings under dynamic load demonstrate this.

These modern devices also self-monitor. They alert the system to overheating or overloading to prevent dangers. Temperature monitoring ensures safe functioning.

Smart current transformers save energy and include safety features. They optimize power utilization by correctly measuring and managing electrical loads.

Smart current transformers show how technology improves power systems management accuracy and safety.

Intelligent Condition Monitoring

Intelligent condition monitoring is a game changer in transformer technology. With advanced sensors and digital signal processing capabilities, this tech offers real-time insights into transformers’ operational status.

Real-Time Data Analysis

Intelligent condition monitoring relies heavily on real-time data analysis. High-speed microprocessors crunch numbers in microseconds, detecting anomalies that might affect transformer performance or safety. For instance, ABB’s CMS-700 energy monitor and control unit provides comprehensive real-time monitoring capabilities for power systems.

Predictive Maintenance

Predictive maintenance is a crucial advantage offered by intelligent condition monitoring. Analyzing trends and patterns in operation data can predict potential issues before they escalate into serious problems.

Enhanced Safety Measures

Safety remains paramount in current transformer operations. Intelligent condition monitoring helps mitigate risks by providing timely alerts about hazards like overheating or insulation breakdowns.

Energy Efficiency

Energy efficiency is another significant benefit associated with intelligent condition monitoring. It optimizes energy consumption by ensuring optimal operation conditions and minimizing wastage through precise control mechanisms.

Enhanced Safety Features

Safety features play a pivotal role in current transformer technology. Over time, manufacturers have pushed boundaries to create safer and more reliable devices. One such example is the incorporation of advanced insulation systems.

Let’s take a look at some notable safety enhancements:

  1. High Insulation Resistance: Modern current transformers exhibit high insulation resistance, minimizing electrical leakages and preventing hazardous incidents.
  2. Polarity Indicators: Polarity indicators aid in the correct installation by identifying the direction of the current flow, reducing potential risks associated with reverse polarity.
  3. Secure Mounting Options: Current transformers now come with secure mounting options, such as DIN rail mounts or base mounts, which ensure stability.
  4. Protected Secondary Windings: These transformers’ secondary windings have protective measures against short circuits and open conditions, enhancing their security quotient.
  5. Intelligent Condition Monitoring: This feature uses advanced sensors for real-time operational status insights, enabling predictive maintenance and improved safety measures.


Modern transformer technology is revolutionizing the power systems industry by enhancing accuracy and safety. We see significant improvements in precision and operational safety, such as toroidal cores from nanocrystalline materials, digital and smart transformers, and intelligent condition monitoring.

These innovations reduce phase displacement errors and electrical faults and offer real-time data analysis and predictive maintenance, ensuring a more reliable and efficient power system. As technology continues to evolve, integrating these advanced transformers will play a crucial role in creating safer, more accurate, and energy-efficient electrical systems for the future.
